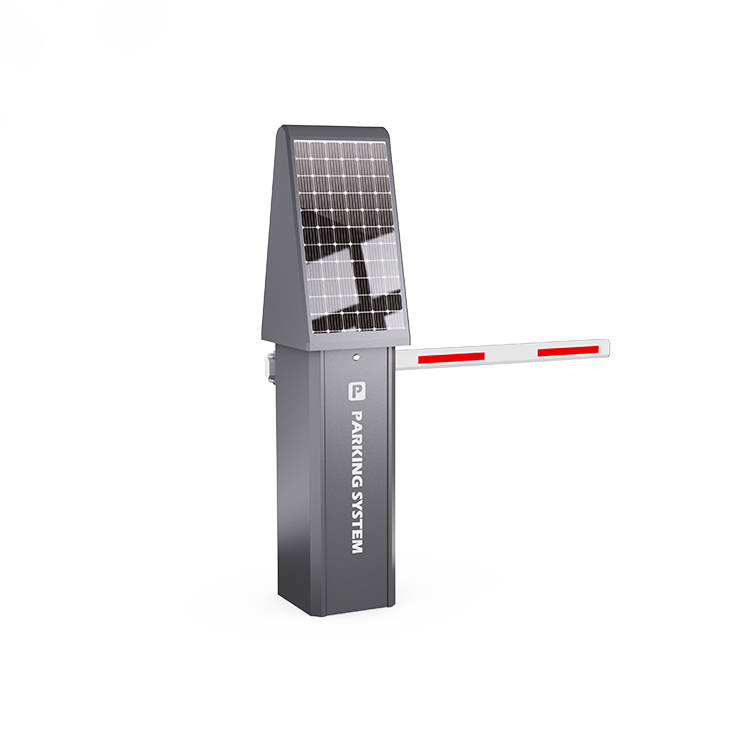

Solar Powered Automatic Barrier Gate with IP54 Protection and High Precision Vehicle Detection
  • Solar Powered Automatic Barrier Gate with IP54 Protection and High Precision Vehicle Detection
  • Solar Powered Automatic Barrier Gate with IP54 Protection and High Precision Vehicle Detection
Solar Powered Automatic Barrier Gate with IP54 Protection and High Precision Vehicle Detection

Solar Powered Automatic Barrier Gate with IP54 Protection and High Precision Vehicle Detection

Место происхождения Шэньчжэнь, Китай.
Фирменное наименование SINOMATIC
Сертификация CE/ ISO
Номер модели DZ-2339
Подробная информация о продукции
Предварительный ручной отпуск:
Да
Услуга:
OEM/ODM доступен
Длина руки:
Максимум 6 метров.
Вес нетто:
О 70kg
Работник:
100%
Жилищный материал:
лист холоднокатаной стали 2,0 mm
Длина бума:
Max.6m
Рабочая температура:
-35 ℃+ 65 ℃
Материал руки:
Сплав алюминия/углеродные волокна
Приложение:
Область потока транспортного потока, транзитный раствор, наружный, раствор для толлинга, парковка
Моторная мощность:
160 Вт
Использование:
Безопасность дорожного движения
Выделить:

IP54 Protection Automatic Barrier Gate

,

Solar Powered Boom Barrier Gate

,

High Precision Vehicle Detection Vehicle Barrier Gate

Условия оплаты и доставки
Количество мин заказа
Пример заказа принята
Цена
negotiable
Упаковывая детали
Картонная/фанерная коробка/поддона
Время доставки
5-10 рабочих дней после получения оплаты
Условия оплаты
T/T, Western Union, Moneygram
Поставка способности
10 000 шт в месяц
Описание продукта
Solar Powered Automatic Barrier Gate with 100% Duty Cycle
High Precision Vehicle Detection and Robust Construction
All-in-One Solar Powered Barrier Gate with maximum arm length of 6m for comprehensive vehicle access control solutions.
Product Overview
Our solar-powered barrier gate combines advanced technology with environmental sustainability, delivering a reliable and cost-effective access control solution for diverse applications worldwide.
Key Features
  • Solar-Powered Efficiency: High-quality 24V photovoltaic solar panels fully charge the battery in 5 hours of sunlight. Operates up to 10,000 cycles without sunlight, ideal for remote locations.
  • High-Precision Detection: Integrated ground-sensing coils and infrared sensors provide <1 second response time for all vehicle sizes.
  • Durable Construction: High-strength steel with anti-rust coatings withstands extreme temperatures (-35℃ to 75℃).
  • Simple Installation: No complex wiring required. Compatible with asphalt, concrete, and gravel surfaces.
  • Advanced Safety: Includes infrared anti-pinch sensors, pressure-wave anti-impact devices, and anti-tampering alarm.
Applications
Commercial parking lots
Residential parking areas
Industrial parks
Event venues
Rural communities
Remote locations
Customization Options
Barrier arm length customizable up to 6 meters for large vehicles. Control system integrates with existing security/access control software for seamless operation.
Quality Assurance
All products undergo rigorous testing to meet international standards. Includes comprehensive after-sales service with technical support, spare parts, and maintenance.
Technical Specifications
Material Steel
Motor DC Brushless
Running Speed 1.2s-3s, 2.5s-6s (adjustable)
Motor No-load speed 1850r/min
Protection Class IP54
Rated Power 160W
Input Voltage DC 24V, AC220V OR 110V
Working temperature -35℃~75℃
Package size 120*55*50 cm
Package weight 70kg
