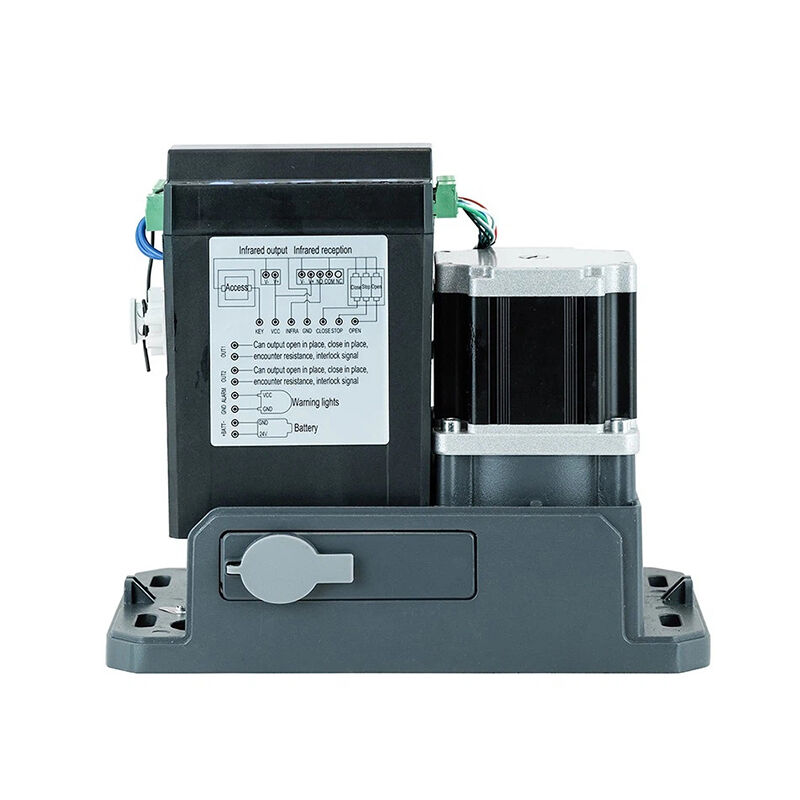

SL500DCW 500KG 22m/min Automatic Sliding Gate Opener with 24V BLDC Motor
  • SL500DCW 500KG 22m/min Automatic Sliding Gate Opener with 24V BLDC Motor
  • SL500DCW 500KG 22m/min Automatic Sliding Gate Opener with 24V BLDC Motor
SL500DCW 500KG 22m/min Automatic Sliding Gate Opener with 24V BLDC Motor

SL500DCW 500KG 22m/min Automatic Sliding Gate Opener with 24V BLDC Motor

Место происхождения Шэньчжэнь, Китай.
Фирменное наименование SINOMATIC
Сертификация CE/ ISO
Номер модели SL500DCW
Подробная информация о продукции
Тип двигателя:
DC24V безщеточное
Мощность двигателя:
140 Вт
Скорость движения ворот:
21-22м/мин
Максимальный вес загрузки:
500 кг
Вес упаковки:
10 кг
Режим дистанционного управления:
Режим с одной кнопкой / Режим с тремя кнопками
Ограниченный переключатель:
Магнитный концевой выключатель/Пружинный концевой выключатель
Рабочая обязанность:
С1
Рабочая температура:
-20°С - +70°С
Условия оплаты и доставки
Количество мин заказа
Пример заказа принята
Цена
negotiable
Упаковывая детали
Картонная/фанерная коробка/поддона
Время доставки
5-10 рабочих дней после получения оплаты
Условия оплаты
T/T, Western Union, кредитная карта/наличные/Alipay, L/C, D/A, D/P
Поставка способности
10 000 шт в месяц
Описание продукта
SL500DCW 500KG 22 Meter Per Minute Moving Speed Automatic Sliding Gate Opener With BLDC Motor
The SL500DCW Sliding Gate Opener Kit is a continuous duty 24V BLDC slide gate opener designed to move gates up to 500kg and 12 meters wide. Featuring electromechanical integration, UV stabilized enclosure, and compact design, this operator includes an internal 24V/2.5Ah battery for operation during power outages.
Product Spotlights
Maximum Load: Supports a maximum load of 500KGS, ensuring it can handle heavy sliding gates.
Motor Power: Equipped with a DC24V/150W motor, providing efficient and reliable operation for sliding gates.
Gate Move Speed: Operates at a speed of 21-22m/min, ensuring quick and smooth gate movement.
Built-in Battery Specification: Includes a 24V/2Ah lithium battery, offering a reliable power backup for consistent performance.
Key Features
  • Continuous duty 24V BLDC slide gate opener for gates up to 500kg and 12 meters wide
  • Electromechanical integration with UV stabilized enclosure
  • Internal 24V/2.5Ah battery for operation during power outages
  • Adjustable opening and closing speed
  • Wi-Fi support with app control for remote operation
  • Comprehensive safety features including safety sensors and flashing lights
  • Safety reversing after detecting obstructions
  • Soft start-slow close function and automatic close function
  • Mechanical clutch device for manual operation during power outages
SL500DCW 500KG 22m/min Automatic Sliding Gate Opener with 24V BLDC Motor 0
Technical Specifications
Unit Model SL500DCW
Power supply AC220V/50Hz; AC110V/60Hz
Maximum gate weight 500KG
Motor Power DC24V/150W
Work duty S1
Limit switch Spring/Magnetic/Electronic Limit Switch
Gate moving speed 21-22m/min
Recording of Up Remote Controls 100
Frequency 433.92MHz
Noise ≤58db
Working Temperature -20℃~+50℃
Built-in Battery Specification 24V/2.5Ah Lithium Battery
Package Weight 10KG
SINOMATIC Advantages
  • Expert, practical advice on gate automation solutions from years of experience
  • Full customization for logo, color, PCB program, cover options, and packaging
  • Strict quality control, flexible MOQ, efficient production with 15-day shipping for MOQ300
  • 70+ technology and product patents
  • ISO, ROHS and CE compliant
  • Outstanding service covering design, development, production, compliance, logistics, and marketing support
